QF170M LCD Waterproof Marine Monitor

QF170M LCD Waterproof Marine Monitor

$21,500.00 USD
$21,500.00 USD
Sale Sold out

Product Description

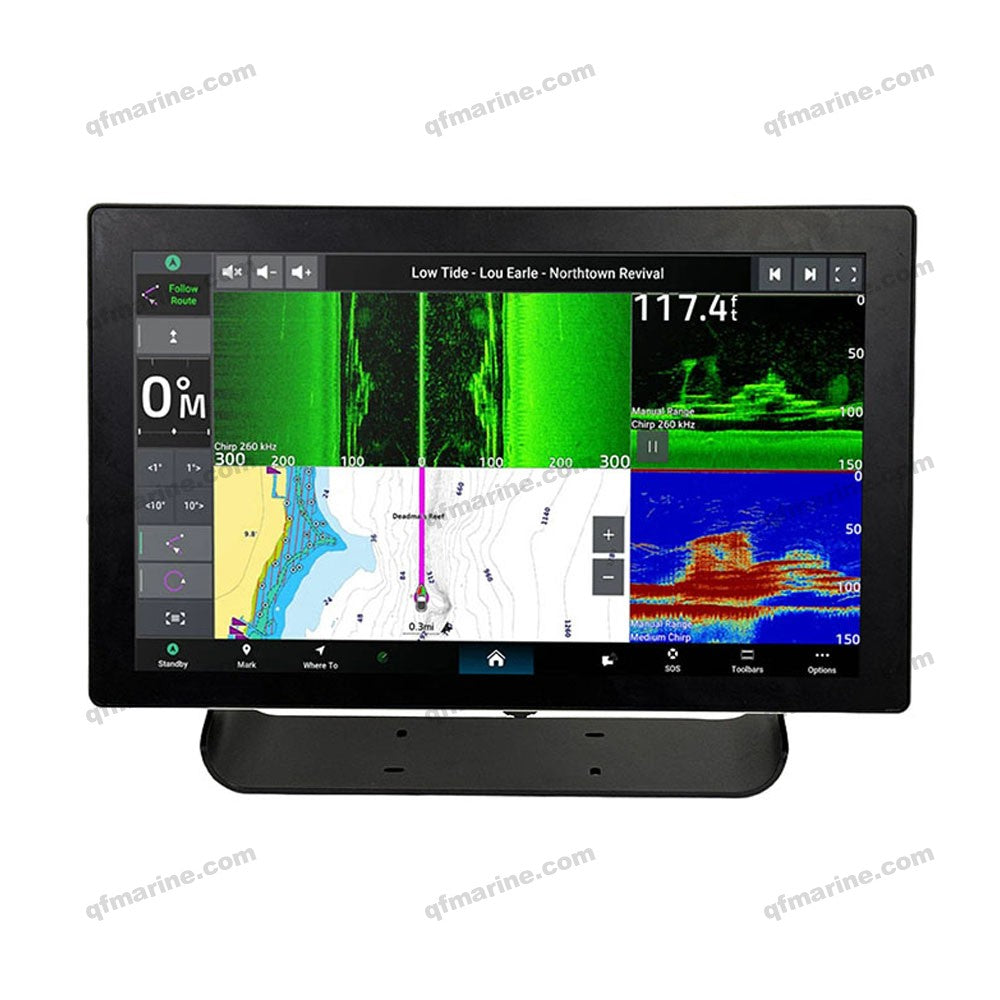

This marine monitor is designed for extreme conditions, featuring an industrial-grade, full-view wide temperature display. Its powerful touchscreen is equipped with a high-performance chip, and its rugged build ensures it can withstand harsh marine environments.

  • Resolution: 1920 x 1080 (Full HD)
  • Brightness: 1500 nits (vivid sunlight-readable)
  • Touch Panel: 10-point capacitive touch
  • Waterproofing: IP67 rating
  • Construction: Aluminum alloy for seawater corrosion resistance
  • Operating Temperature: -20°C to +75°C (-4°F to +170°F)
  • Glass Type: Optical bonding with anti-glare & UV coating

Note: This product features a specialized anti-glare coating to reduce glare and enhance visibility, even in bright sunlight.

Product Description

  • Display Size: 12.1"~ 27" diagonal
  • Aspect Ratio: 16:9
  • Polarization: Upgraded polarization technology
  • Weight: 7.5 KG (16.5 lbs)

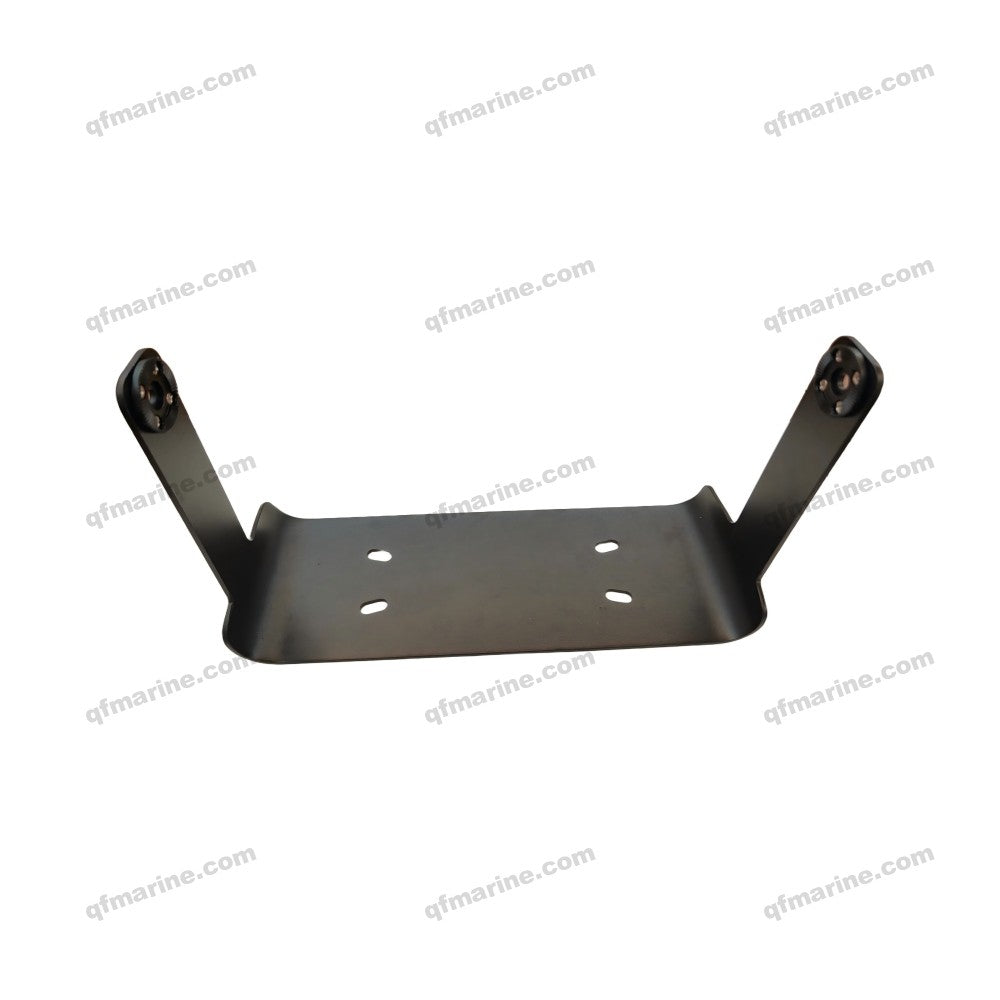

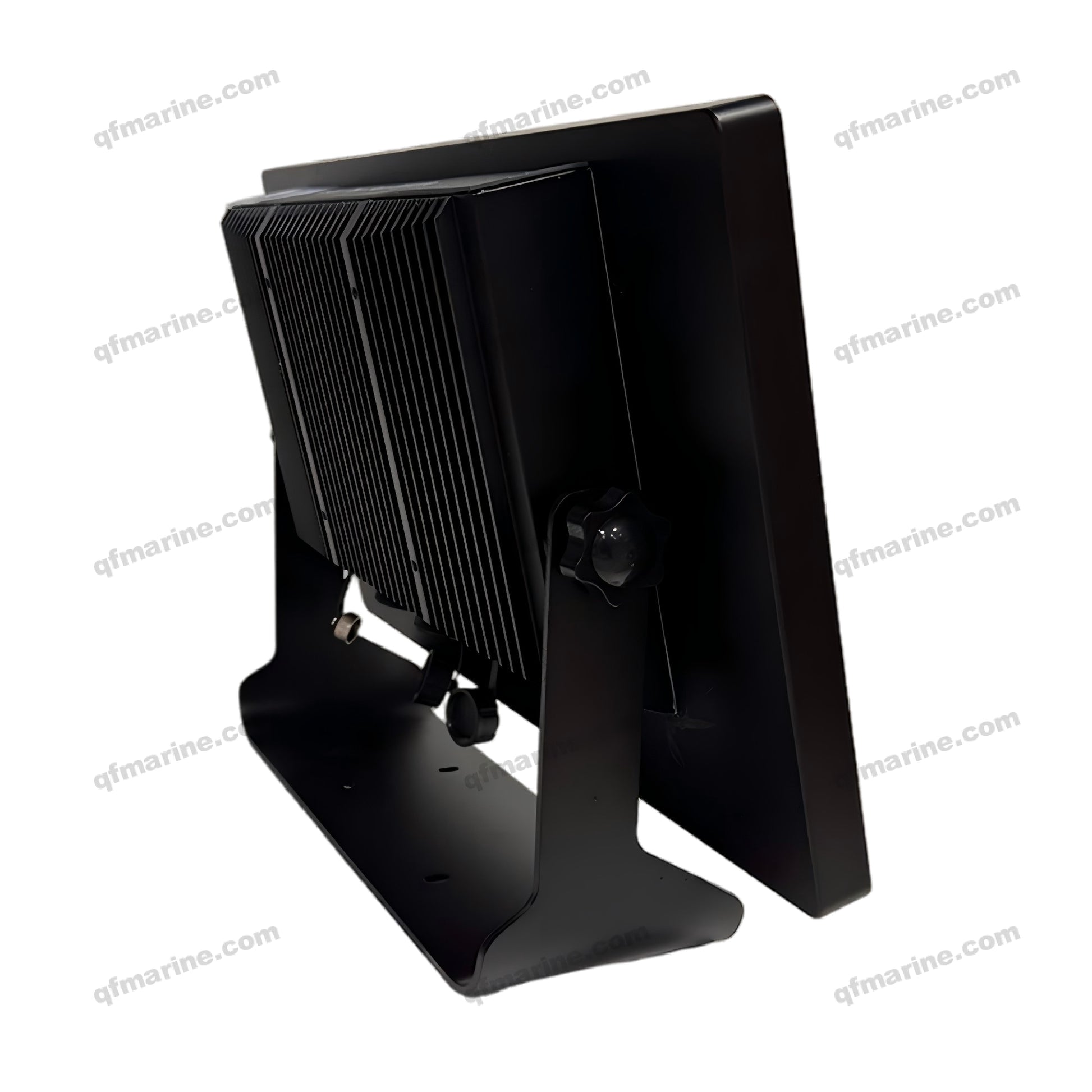

  • Mounting Options: Gimbal mount included
  • Shock Resistance: 20G rugged shock rating
  • Glass Type: Optical bonding with anti-glare & UV coating

Package Contents

  • Marine Monitor
  • Sun Protective Cover
  • User Manual
  • Gimbal Mount
  • HDMI Cable
  • DC Power Cable
  • USB Cable

Function Operation

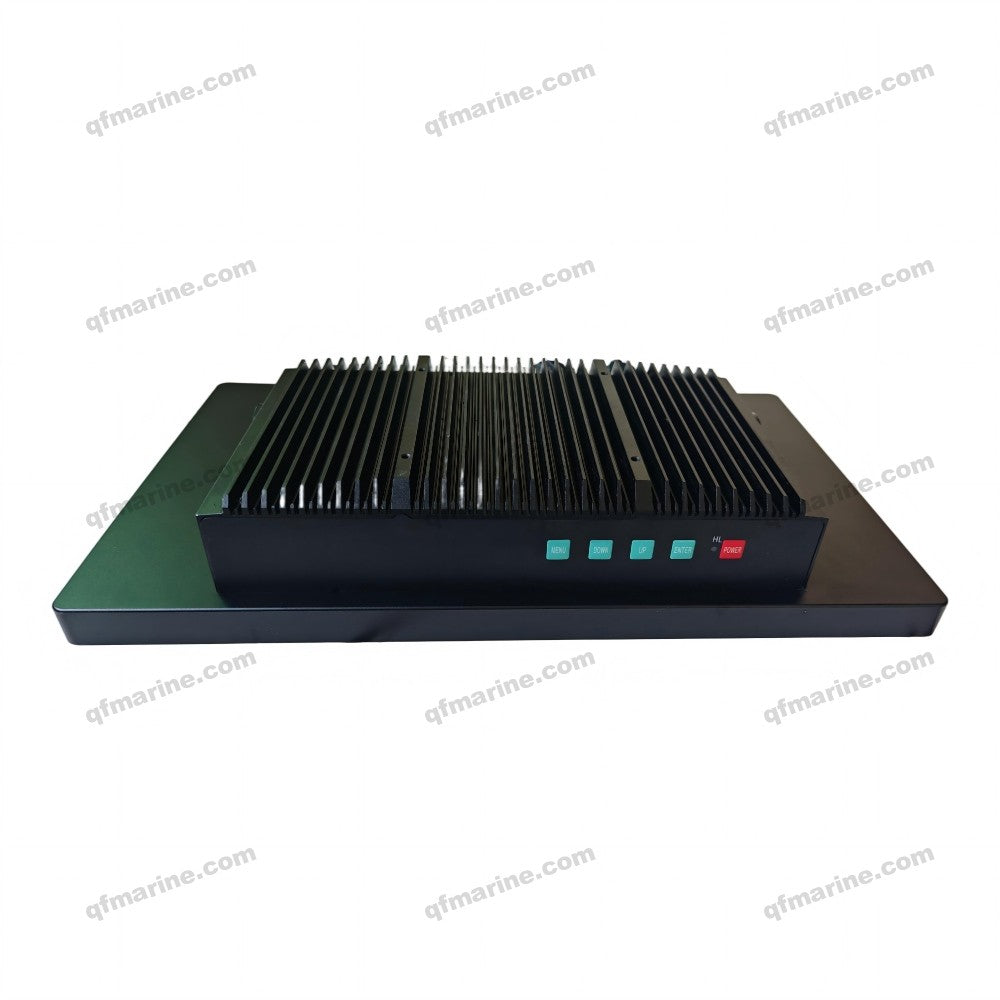

Top Panel – Button Control Functions:

  • POWER: Turns the device on or off.
  • MENU: Opens or exits the OSD menu.
  • UP: Moves the selection upward or increases the selected value.
  • DOWN: Moves the selection downward or decreases the selected value.
  • ENTER: Confirms the selected option or enters a submenu.

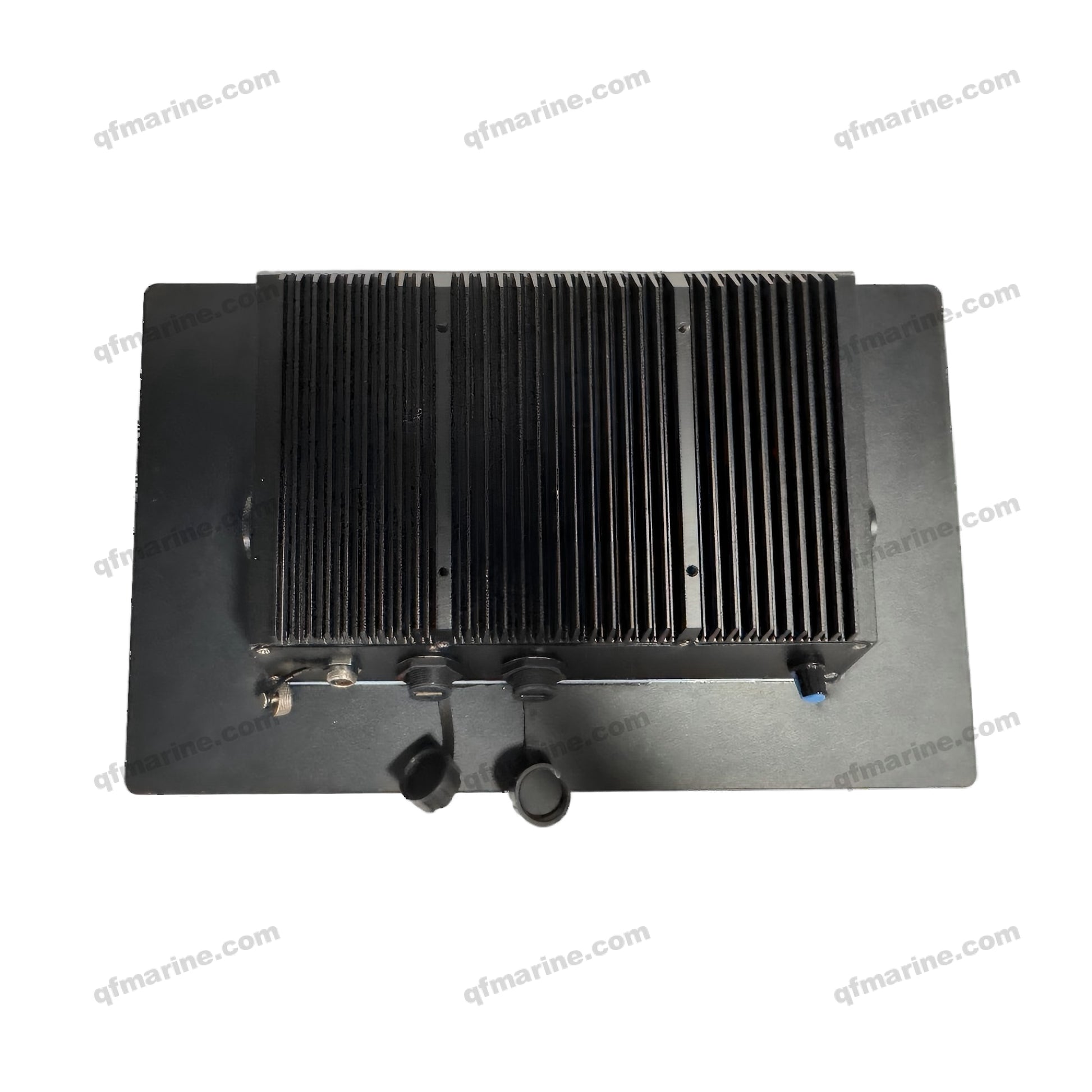

Bottom Panel – Power & Signal Interfaces:

  • Power Input: DC 12-36V
  • HDMI IN: HDMI video signal input port
  • Touch IN: Touch signal input port for connecting an external touch panel
  • ON/OFF (PWM): External control switch, supports PWM signal control

Connecting Power:

1. Connect the DC power cable to the monitor's DC IN port.
2. Connect the other end to a DC 12-36V power source (marine battery system).
3. Ensure polarity and voltage are correct before powering on.
